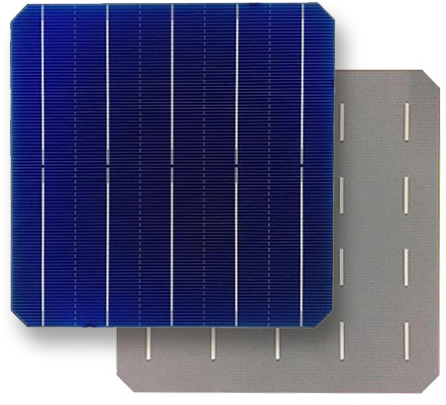

The product specification of monocrystal solar cell <br/>-156M-5BB

Type Code：M03 Monocrystal Silicon PERC

External Dimension

1、Dimension：156.75x156.75±0.50mm ; Chamfering：R=1mm

2、Front Busbar Width：0.7±0.1mm Fingers：104

3、Rear Busbar Width：2.1±0.3mm

4、Cell Thickness：180±20um

PID- Free	AOI Visual Inspection
Front Busbar Tension>2N/mm	Rear Busbar Tension>2N/mm

TKVoltage：a=-0.36%/K

TKCurrent：b=+0.07%/K

TKPower ：r=-0.38%/K
